Worth: $409.99
(as of May 15, 2025 01:27:22 UTC – Particulars)
Product Description
Help cellphone app( android and iPhone) to open lock, simple to make use of.
Software program helps Win7/Win8/Win10/Win11 each 32 & 64 bit ALL Home windows system.
We offer video information+element wire diagram,so you may simply setup system.
We solely do high quality product and repair, as a result of that is for safety system, can verify video earlier than buy.

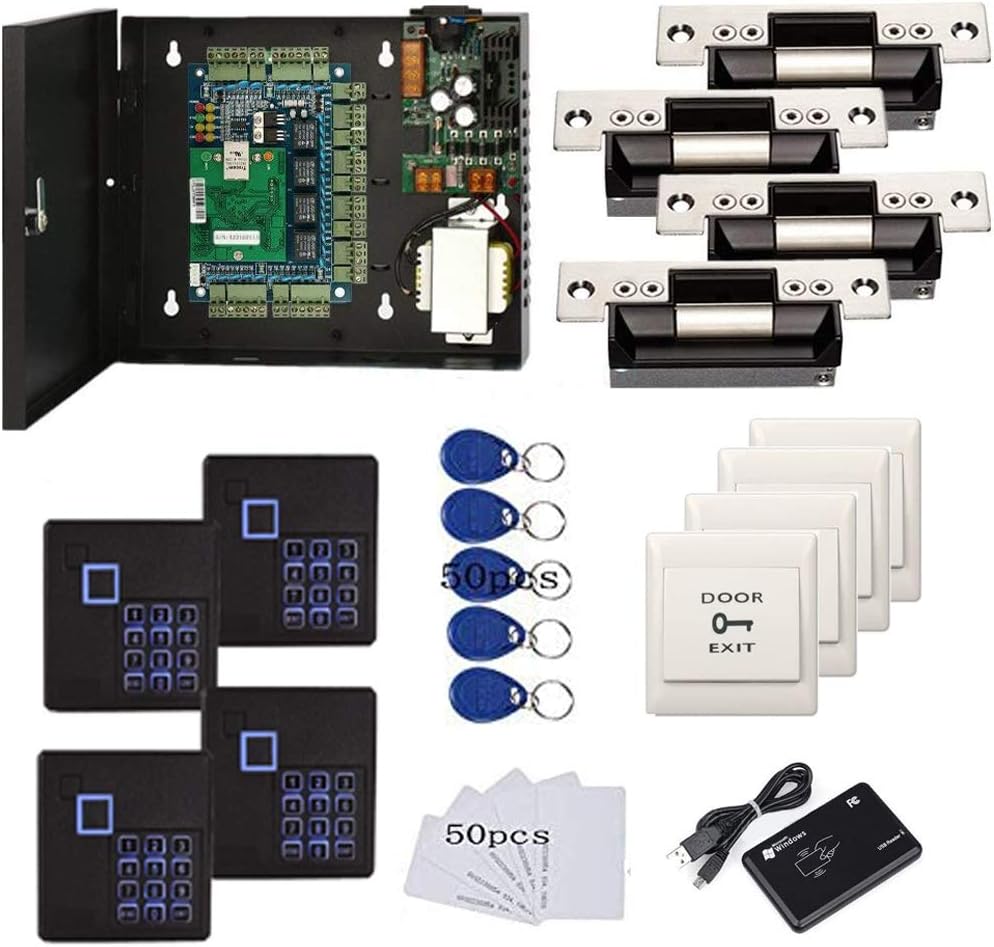

Package deal embody::
1 x Energy provide Field( 110-240V enter, 5A output, to energy the entire system, additionally as cupboard for above management board )
1 x 4 Doorways Wiegand Entry management Panel
4 x ANSI Strike Lock［1000kg power, Failure Safe, maintain locked in case of energy failure, can also alter to Failure Protected mode,The strike lock usually work together with your exisitng Mechanic Lock(flip deal with) or Knob Lock］
1).It is put in inside your door body,must Lower Door Body if haven’t any current gap.2).It is NOT for PUSH Bar,it is for Knob Lock or Mechanic Lock which has deal with.3).Lock Size is 4.84 in. Be certain dimension is sutiable in your door earlier than buy.
4 x RFID Keypad/PIN Pad Reader( assist swipe or PIN or card+PIN )
4 x Push to Exit Button
1 x USB Enroll Reader
50 x RFID Playing cards
50 x RFID Keyfobs
1 x Consumer handbook with Element Instruction/Wire diagram/Video Information
MENGQI-CONTROL Full TCP/IP Entry Management Panel System Equipment for 4 Door with Keypad Reader +110V Energy Provide Field +Electrical ANSI Strike Lock
What the system can do:
Fundamental funtion: swipe card/key fob, enter PIN code or use card + PIN to open door.Simply add/delete/activate/disable the consumer open privilege by skilled administration software program.Help cellphone app to open door regionally or remotely.Can be utilized for prime safety space, the management board as grasp unit is put inside room.Can verify/obtain/export the element historical past entrance report.Enable entry for sure door at sure time for various customers.Can maintain door auto open throughout enterprise hour after which auto shut at set time, assist vacation safety management.Can swipe sure occasions to maintain open and swipe sure occasions to shut door.Can be utilized for consumer attendance verify additionally.Quite a bit different options comparable to anti-pass again, 1st card open, multi-card open .and so on…….
Kindly observe: The strike is put in inside your door body(Must dig a gap of appropriate dimension within the door body to put in the lock physique) and used to safe your door in your entry functions!
Appropriate for steel and wood door body.
Work with knob lock or mechnical lock.Knob lock or mechnical lock should purchase seperate, or work together with your current knob lock or mechanic lock.
As talked about, the door strike goes put in throughout the door body as illustrated right here.
Energy Provide Field:
Energy：60WRated Present：5AInput Voltage：110V-240V, can be utilized everywhere in the world.Output: DC12V to energy on the entire System(11－14V might be fine-tuned).Coloration of the field：blackSize of the field：279mm * 234mm * 67mmAlso act as the cupboard for the management board.With energy cable to insert to electrical outlet field.
4 Doorways Community Entry Management Panel:
Management 4 doorways,get in by swipe card/key fob, enter PIN code or use card + PIN, and get out door by exit button.Door managed : 4Support 4 readers.Management of consumer capability as much as 20,000 consumer / as much as 100,000 historical past data.Community communication through TCP/IP.Entry management administration software program consists of all-in-one-card administration system, comparable to regular shift and multi-shifts time attendance administration system,assembly attendance administration system,ect.Utility software program assist Win7/Win8/Win10/Win11 each 32 & 64 bit ALL Home windows system, not assist MAC.Help net interface(no superior management, can add/delete consumer and verify data .and so on fundamental perform).Help cellphone app to open door even you aren’t there.Report by no means misplaced in case of energy failure.
Electrical ANSI Strike Lock
Help each failure safe(NO mode,Locked when energy is eliminated) and failure secure(NC mode,Locked whereas equipped with energy) ,safety mode is adjustable.Appropriate for:wood door,steel door,PVC doorStrike construction:stainless steelLock tongue:floor by coating nickel;Face plate housing:painted metal,high-temperature painted,duable and beatiful artical.Testing to 1000000 cycles.Holding power:1000kgLock dimension:123Lx43Wx42H(mm) / 4.84Lx1.69Wx1.65H(inch)Voltage/Present:12V/320mASuitable Temperature : -10~+55C14-131F)Working Humidity : 0~90%(non-condensing)
Keypad Reader
Enter Voltage:DC 12VReading vary: 3-15 cm.Constructed-in LED and loud speaker (buzzer)Helps card, PIN, card + PIN,work along with the management board.Dimension: 86*86*18 mm/ 3-3/8″ (W) x 3-3/8″(H) x 3/4″ (D) inchRFID reader assist Wiegand 26/34 bit.It may well learn EM 125khz RFID playing cards/key fobs.Coloration:black
Push to Exit Button
Mechanical life: > 500000 timesOperating temperature: -20C ~ 55CPanel materials: arduous plasticDimension: 86Lx86W(mm)Straightforward wire, simply join the 2 contacts to P1/GND for DOOR1, P2/GND for DOOR2 …
RFID Keyfobs
Learn solely, Can’t be programmed.coloration/Materials:Blue/ABS.Every comes with Key ring included.Suitable with all RFID reader to achieve accesswaterproofDimension: 36x29x6.6mmResponse frequency: 125 KHzCard kind: EM4100/4102 (Cannot assist some encrypted playing cards,comparable to HID,Cobra,APCiK,Paradox,Radio,Honeywell,Kaba,Isonas,and so on)Operation Temperature : -40°C to 85°CDetecting distance: 5-10cmApplication scope: public transportation, parking, ID identification, attendance system, ticketing, card cost, product emblem, and so on
It is ANSI strike lock,extensively utilized in North American. Be aware that 1).It is put in inside your door body,must Lower Door Body if haven’t any current gap. 2).It is NOT for PUSH Bar,it is for Knob lock or Mechanic Lock which has deal with. 3).Lock Size is 4.84 in. Be certain dimension is sutiable in your door earlier than buy. 4)1000kg Power, Maintain locked in case of energy failure by default(fail safe mode), can also alter to Fail Protected mode.
Management 4 doorways.Get in door by swiping card or PIN code, and get out door by push button or flip lock deal with/knob. Can retailer/obtain/verify entry data and generate report by skilled administration software program.Highly effective {and professional} administration software program makes the system have many prolonged management features.Have cellphone APP to open lock remotely(Help iPhone & Android )
Consumer capability: 20,000 consumer / as much as 100,000 data. Auto open/shut at any pre-set time throughout any day. Help “who” can enter which door at sure time, approved entry management.
Card Sort: EM-ID Card. Lower than 0.2 second Response Velocity, 5-10cm Proximity Vary. Desktop USB reader,learn card quantity into software program in order that simple programming/register consumer. Element video information and wire diagram make all simply, you may DIY.
Community communication through TCP/IP, Software program Help Win7/Win8/Win10/Win11 each 32 & 64 bit ALL Home windows system. After programming completed, it is totally stand alone working system, no want community connection, no want hook to laptop.
